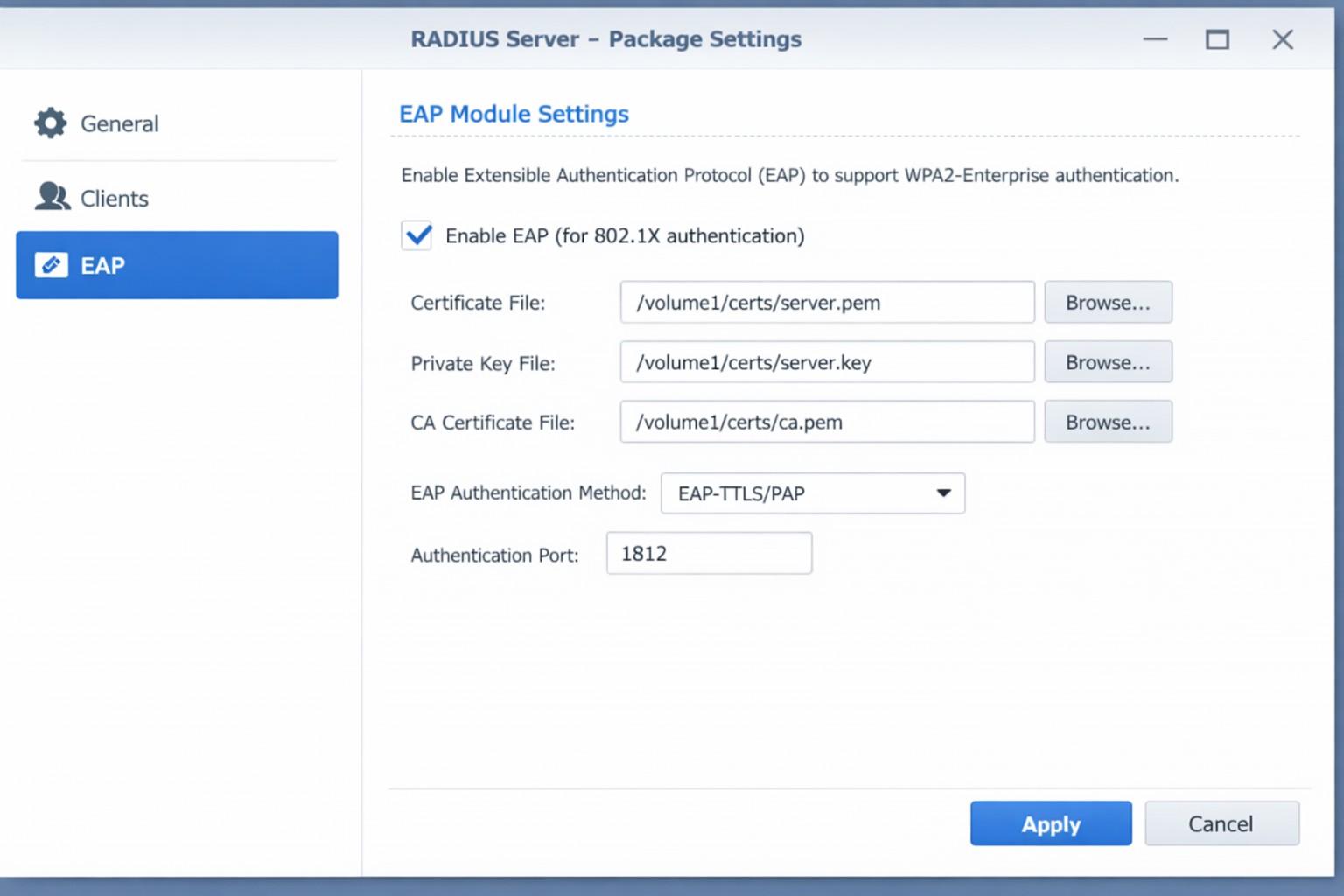

This is the eighth and final of a series that documents the Tier 3 / Co-Managed IT work we did to setup a wireless test bed for a Linux based scientific device. The testing environment included two different wireless network hardware types (Ubiquiti and Cisco). There was also a Synology device used for various purposes including hosting the Ubiquiti controller inside a Kubernetes container, providing certificate services, providing LDAP authentication, and providing RADIUS authentication. Each article has detailed a separate piece of the project. This article shows the setup of Synology RADIUS server for EAP authentication via EAP-PEAP, EAP-TLS, and EAP-TTLS.

Setup Synology Radius for EAP-PEAP

1. Login to Synology IP via SSH
2. Use admin login credentials
3. Go to the Radius certificate directory
   cd /var/packages/RadiusServer/target/etc/raddb/certs/
4. Radius must be configured on our certificates:
   sudo vi ../mods-enabled/eap
5. Type i to start insert then paste the following:

    eap {
        default_eap_type = peap
        timer_expire     = 60
        ignore_unknown_eap_types = no
        cisco_accounting_username_bug = no
        max_sessions = ${max_requests}

        #md5 {
        #}

        #leap {
        #}

        #gtc {
        #   auth_type = PAP
        #}

        tls-config tls-common {
            #private_key_password = whatever
            private_key_file = ${certdir}/server.key
            certificate_file = ${certdir}/server.crt
            #$INCLUDE /usr/local/synoradius/rad_ca_cert
            dh_file = ${certdir}/dh
            random_file = ${certdir}/random
            ca_file = ${certdir}/ca.crt
            ca_path = ${certdir}
            #INCLUDE /var/packages/RadiusServer/target/etc/cipher_list
            verify {
            }
        }

        #tls {
        #   tls = tls-common
        #}

        #ttls {
        #   tls = tls-common
        #   default_eap_type = mschapv2
        #   copy_request_to_tunnel = no
        #   use_tunneled_reply = no
        #   virtual_server = "inner-tunnel"
        #}

        peap {
           tls = tls-common
           default_eap_type = mschapv2
           copy_request_to_tunnel = yes
           use_tunneled_reply = yes
           virtual_server = "inner-tunnel"
        }

        #mschapv2 {
        #}
    }

1. Hit ESC to end insert then type :wq to exit
2. The radius service must be restarted in the Synology Package Center (Stop / Run)

Setup Synology Radius for EAP-TLS

1. Login to Synology IP via SSH
2. Use admin login credentials
3. Go to the Radius certificate directory
   cd /var/packages/RadiusServer/target/etc/raddb/certs/
4. Radius must be configured on our certificates:
   sudo vi ../mods-enabled/eap
5. Type i to start insert then paste the following:

       eap {
        default_eap_type = tls
        timer_expire     = 60
        ignore_unknown_eap_types = no
        cisco_accounting_username_bug = no
        max_sessions = ${max_requests}

        #md5 {
        #}

        #leap {
        #}

        #gtc {
        #   auth_type = PAP
        #}

        tls-config tls-common {
            #private_key_password = whatever
            private_key_file = ${certdir}/server.key.pem
            certificate_file = ${certdir}/server.crt.pem
            #$INCLUDE /usr/local/synoradius/rad_ca_cert
            dh_file = ${certdir}/dh
            random_file = ${certdir}/random
            ca_file = ${certdir}/ca.crt.pem
            ca_path = ${certdir}
            #INCLUDE /var/packages/RadiusServer/target/etc/cipher_list
            verify {
            }
        }

        tls {
            tls = tls-common
        }

        #ttls {
        #   tls = tls-common
        #   default_eap_type = mschapv2
        #   copy_request_to_tunnel = no
        #   use_tunneled_reply = no
        #   virtual_server = "inner-tunnel"
        #}

        #peap {
        #   tls = tls-common
        #   default_eap_type = mschapv2
        #   copy_request_to_tunnel = no
        #   use_tunneled_reply = no
        #   virtual_server = "inner-tunnel"
        #}

        #mschapv2 {
        #}
    }

1. Hit ESC to end insert then type :wq to exit
2. The radius service must be restarted in the Synology Package Center (Stop / Run)

Setup Synology Radius for EAP-TTLS

1. Login to Synology IP via SSH
2. Use admin login credentials
3. Go to the Radius certificate directory
   cd /var/packages/RadiusServer/target/etc/raddb/certs/
4. Radius must be configured on our certificates:
   sudo vi ../mods-enabled/eap
5. Type i to start insert then paste the following:

     eap {
        default_eap_type = ttls
        timer_expire     = 60
        ignore_unknown_eap_types = no
        cisco_accounting_username_bug = no
        max_sessions = ${max_requests}

        #md5 {
        #}

        #leap {
        #}

        #gtc {
        #   auth_type = PAP
        #}

        tls-config tls-common {
            #private_key_password = whatever
            private_key_file = ${certdir}/server.key
            certificate_file = ${certdir}/server.crt
            #$INCLUDE /usr/local/synoradius/rad_ca_cert
            dh_file = ${certdir}/dh
            random_file = ${certdir}/random
            ca_file = ${certdir}/ca.crt
            ca_path = ${certdir}
            #INCLUDE /var/packages/RadiusServer/target/etc/cipher_list
            verify {
            }
        }

        #tls {
        #    tls = tls-common
        #}

        ttls {
           tls = tls-common
           default_eap_type = mschapv2
           copy_request_to_tunnel = no
           use_tunneled_reply = no
           virtual_server = "inner-tunnel"
        }

        #peap {
        #   tls = tls-common
        #   default_eap_type = mschapv2
        #   copy_request_to_tunnel = yes
        #   use_tunneled_reply = yes
        #   virtual_server = "inner-tunnel"
        #}

        #mschapv2 {
        #}
    }

1. Hit ESC to end insert then type :wq to exit
2. The radius service must be restarted in the Synology Package Center (Stop / Run)
